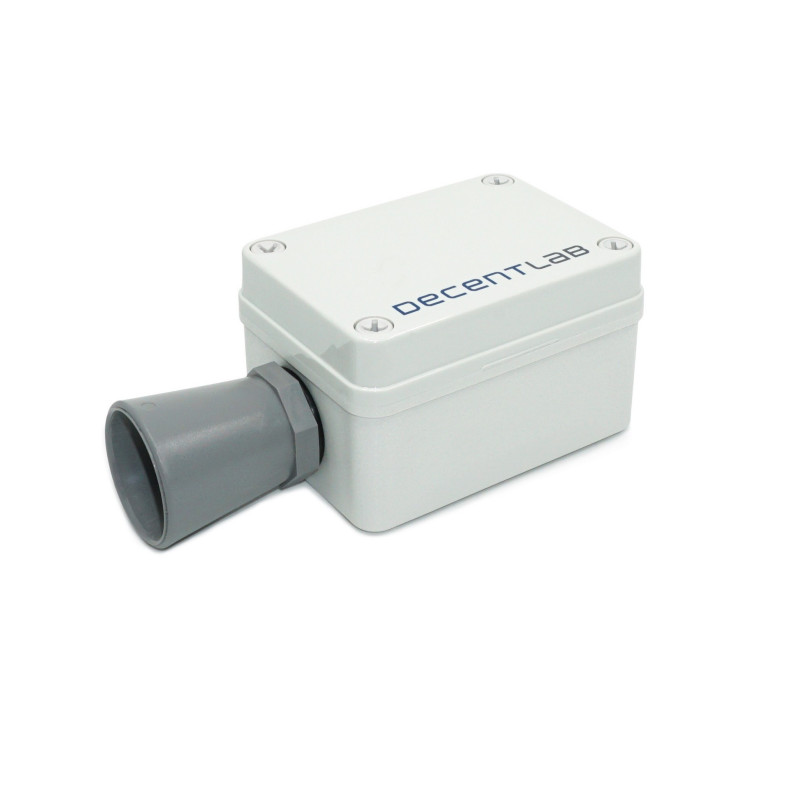

DL-MBX-002 | Ultrasonic Tank Liquid Level Sensor for LoRaWAN®
Monitoring of the level of liquid in the tanks and sewer system - 0.3m - 5m range
Applications:
Smart city - tank level, sewer system
LoRaWAN®-enabled non-contact distance sensor (rangefinder).
Range: 5 m; resolution: 1 mm.
Compatible with LoRaWAN® networks of any provider.
Place and measure: no setup required.
Configurable via command line interface and downlink command interface.
Unattended real-time monitoring for several years without replacing batteries.
Robust polycarbonate enclosure: weatherproof, impact-, UV-resistant (IP67).
Standard alkaline (C-type) batteries.
CE compliant, Radio Equipment Directive (RED) 2014/53/EU.
DL-MBX-002-EU868
Data sheet
- Communication
- LoRaWAN® Class A
- Sensor
- ultrasonic time of flight measurement
- IP Rating
- IP67
- Operating Temperature
- -20 ... +50 °C
- Operating Humidity
- 0 ... 100 % RH
Monitoring of the level of liquid in the tanks and sewer system - 0.3m - 5m range
Applications:
Smart city - tank level, sewer system
