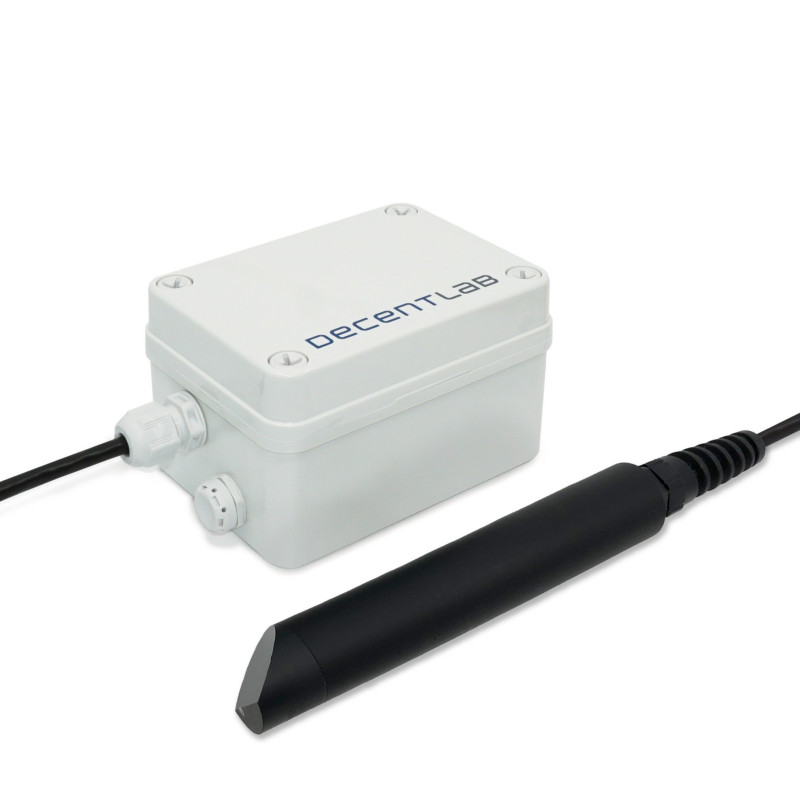

DL-NTU-001 | Optical Turbidity and Temperature Sensor for LoRaWAN®
Optical infrared turbidity and temperature monitoring
Applications:
Smart city - wastewater treatment, drinking water monitoring
LoRaWAN®-enabled optical infrared turbidity and temperature sensor.
Measurement range: 0 … 4000 NTU, 0 … 4500 mg/L.
Cable length: 7 m (custom lengths on request).
Compatible with LoRaWAN® networks of any provider.
Place and measure: no setup required.
Configurable via command line interface and downlink command interface.
Unattended real-time monitoring for several years without replacing batteries.
Robust polycarbonate enclosure: weatherproof, impact-, UV-resistant (IP67).
Standard alkaline (C-type) batteries.
CE compliant, Radio Equipment Directive (RED) 2014/53/EU.
DL-NTU-001-EU868
Data sheet
- Communication
- LoRaWAN® Class A
- Sensor
- Optical, IR (850 nm) nephelometry, diffusion at 90º
- IP Rating
- IP67
- Operating Temperature
- device: -20 ... +50 °C; sensor head: 0 ... +50 °C
- Operating Humidity
- device: 0 ... 100 % RH; sensor head: non-freezing
