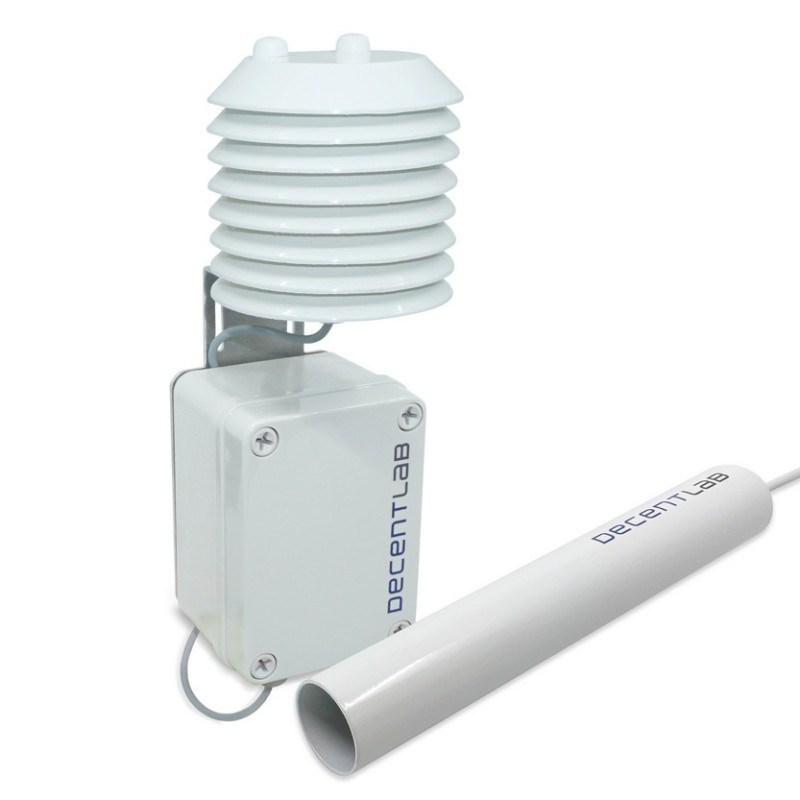

DL-WRM-002 | Pyrometric surface temperature sensor for LoRaWAN®

Pyrometric surface temperature sensor featuring weather protection and mounting kit.

Applications:

Winter road maintenance - black ice alert

Smart agriculture - frost alarming

Region: EU868

LoRaWAN® enabled combined air temperature/humidity and infrared surface temperature sensor.

High accuracy air temperature measurement: ±0.1 °C (20 … 60 °C); ±0.2 °C (-40 … 90 °C).

High accuracy air humidity measurement: ±1.5 % (0 … 80 %); ±2 % (80 … 100 %) RH.

Contactless surface temperature sensor (pyrometer).

Compatible with LoRaWAN® networks of any provider.

Place and measure: no setup is required.

Configurable via command line interface and downlink command interface.

Unattended real-time monitoring for several years without replacing batteries.

Robust polycarbonate enclosure: weatherproof, impact-, UV-resistant (IP67).

Standard alkaline (C-type) batteries.

CE compliant, Radio Equipment Directive (RED) 2014/53/EU.

DL-WRM-002-EU868

Data sheet

Communication
LoRaWAN® Class A
Sensor
air temperature, air relative humidity, surface temperature
IP Rating
IP67
Operating Temperature
sensor head - surface: -20 ... +80 °C, sensor device - air: -20 ... +50 °C
Operating Humidity
sensor head - surface: 0 ... 95 % RH, non-condensing, sensor device - air: 0 ... 100 % RH
