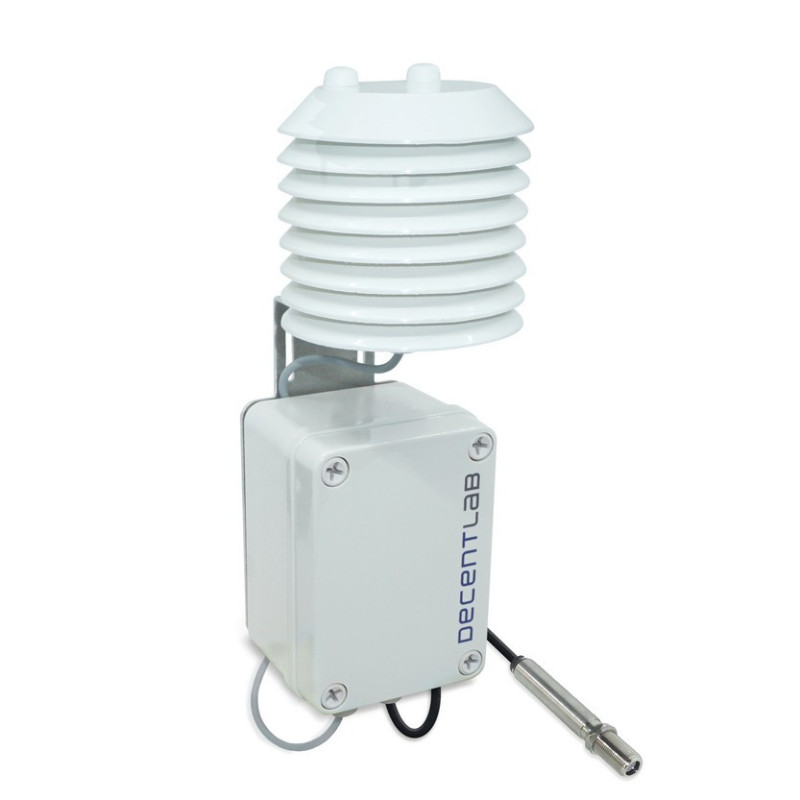

DL-WRM-001 | Pyrometric surface temperature sensor for LoRaWAN®
Pyrometric surface temperature sensor without head protection and mounting kit.
Applications:
Winter road maintenance - black ice alert
Smart agriculture - frost alarming
LoRaWAN® enabled combined air temperature/humidity and infrared surface temperature sensor.
High accuracy air temperature measurement: ±0.1 °C (20 … 60 °C); ±0.2 °C (-40 … 90 °C).
High accuracy air humidity measurement: ±1.5 % (0 … 80 %); ±2 % (80 … 100 %) RH.
Contactless surface temperature sensor (pyrometer).
Compatible with LoRaWAN® networks of any provider.
Place and measure: no setup is required.
Configurable via command line interface and downlink command interface.
Unattended real-time monitoring for several years without replacing batteries.
Robust polycarbonate enclosure: weatherproof, impact-, UV-resistant (IP67).
Standard alkaline (C-type) batteries.
CE compliant, Radio Equipment Directive (RED) 2014/53/EU.
DL-WRM-002-EU868
Data sheet
- Communication
- LoRaWAN® Class A
- Sensor
- air temperature, air relative humidity, surface temperature
- IP Rating
- IP67
- Operating Temperature
- sensor head - surface: -20 ... +80 °C, sensor device - air: -20 ... +50 °C
- Operating Humidity
- sensor head - surface: 0 ... 95 % RH, non-condensing, sensor device - air: 0 ... 100 % RH
